"Head to Head"

M10 verses Expert X

Last Updated: 07/15/07

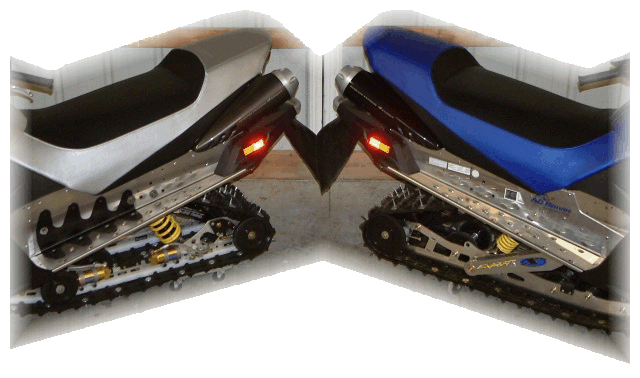

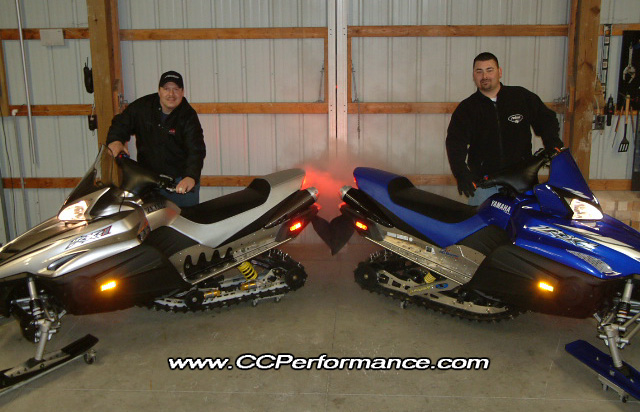

The following is the results of Totallyamaha’s Head to Head comparison of the Fast Inc. M10 and the A.D. Boivine Expert X suspensions. Please see M10 and Expert X individual reviews for further information.

M10 Verses Expert X Ratings



M10

Expert X

Stock

Ease Installation

5

9

N/A

Support

10

3

N/A

Trail Side Adjustability

6

8

2

Shock Options

10

1

1

Weight Transfer

4

10

6

Hyfax wear

10

8

4

Small Bump (Low Speed)

10

9

5

Big Bump (Low Speed)

9

7

4

Small Bump (High Speed)

10

8

5

Big Bump (High Speed)

9

7

3

Overall Comfort

10

8

5

Overall Control

8

9

6

Track Ratchet

10

10

4

Top Speed

7

10

10

Average Rating

8.5

7.5

4.5

Rating: (1) poor to (10) Excellent

N/A: Does not apply



Ease Installation

 The M10 installation was more difficult and time consuming, however the setup and trouble shooting guide was very well thought out and helped a great deal in both the setup and tuning. The actual Installation of the Expert X was easier then the M10, but the instructions where less than desired and lacked a troubleshooting section.



Support

 Fast (M10) was an easy company to contact and speak with a live technician. The support staff and their suggestions addressed issue usually the first time. AD Bovine was not always easy to contact. Often it took several tries to be able to speak to a live technician and leaving messages did not always initiate a return call. Suggestions given in a number of cases did not resolve the issue.



Trail Side Adjustability

 The M10 wrenches that were included with the suspension were difficult to use on the trail when adjusting the FRA. A ratchet type wrench would be more desirable with the standard setup. A jack option is offered that would make this a much easier adjustment on the trail but is an expensive option. The Expert comes with a ratchet type wrench as well as a spanner for spring preload. All adjustment can be easily made on the trail, including weight transfer, ride height and spring pre-load.



Shock Options

 The M10 has several shock options from fixed rate standard shock to fully adjustable Ohlins. The Expert is only available with the standard KYB.



Weight Transfer

 The stock M10 has no adjustable weight transfer. Changing the coupler block can make some adjustment, however this is not a trailside option. The Expert has a hand adjustable weight transfer knob easily adjustable on the trail. Pictures below will give you a Idea of the weight transfer from one extreme to the next.



Hyfax wear

 Hyfax wear for both suspensions seamed far better than stock.



The Bumps

 The M10 seams to be able to handle just about anything, however a more aggressive setting handles the larger bumps better at faster speeds. The Expert seamed to be difficult to find the overall good setting to cover most trail conditions.



Overall Comfort

 Our comfort rating is based on the ability to ride endless miles with little to no soreness or fatigue. When properly setup the M10 may be driven long distances with very little fatigue. The Expert after a long trip may leave you a little sore and fatigued.



Overall Control

 Our overall control rating is based on the ability to keep control over all trail conditions.

Both the M10 and the Expert provided good control over most condition. The M10 did result in a slight ski lift in some cases when cornering hard.



 Track Ratchet

 With the stock suspension in the RX1 there were several complaints of track ratcheting. We did not experience this in either the M10 or the Expert.



 Top Speed

 With any aftermarket suspension that increases the ride height of the machine, you will experience some loss in top end. The Expert seams to be very close to stock or slightly better with no noticeable top end loss. In our runs the M10 averaged about a 5-6 MPH loss in top speed



 Special thanks to Neal Warling for letting us stay and test at his place in Paradise MI.



"Check back often for more Info."
