Stud Patterns

Here is a modified 144 pattern for a 136 track.

168 Standard Stud Patterns

by MrSled

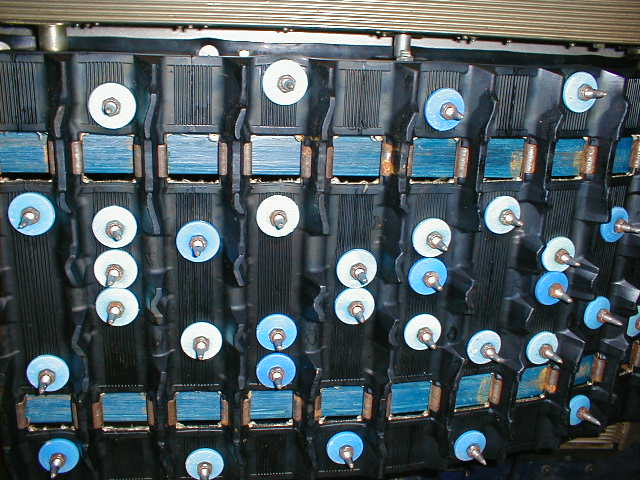

Here are two different patterns for 168 studs.  The first set of patterns are off my 1999 SRX and I have 4900 miles on that particular track and pattern.  The second set of patterns are off my 2001 SX700R and I have 2500 miles on that particular track and pattern.  Both of these patterns have worked great for me.  I run 1.15 Fast-trac Top Gun II studs and Fast-trac polymer backers.  Since I have gone to the Fast-trac product I have not tore one stud through my OEM Yamaha tracks.

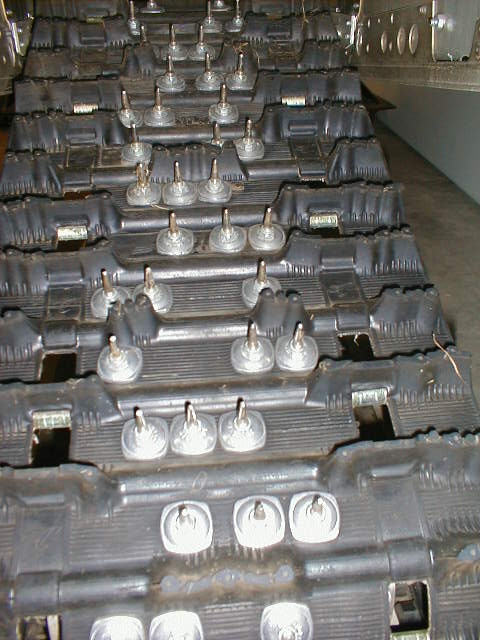

168 Pattern, 1999 SRX700

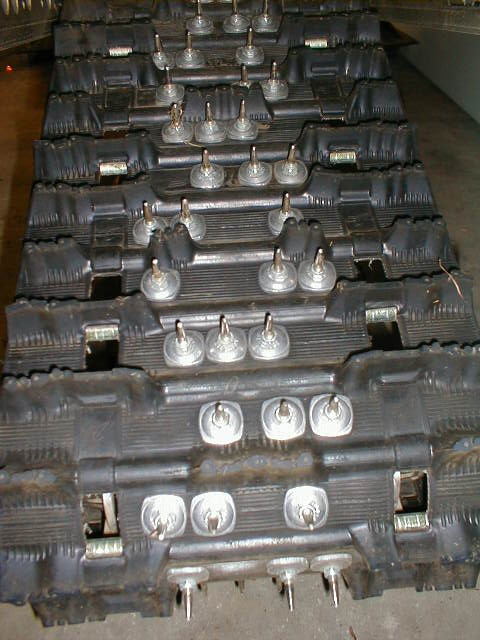

168 Pattern, 2001 SX700R

New 144 Center Grass drag Stud Patterns

 by:

===SRXRULES===

144 Center Stud Patterns

Proven to work by:

===SRXRULES===

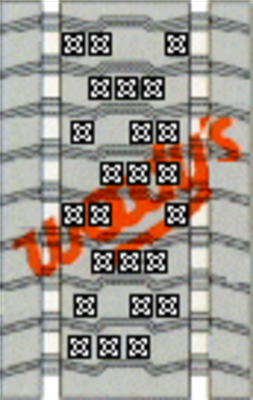

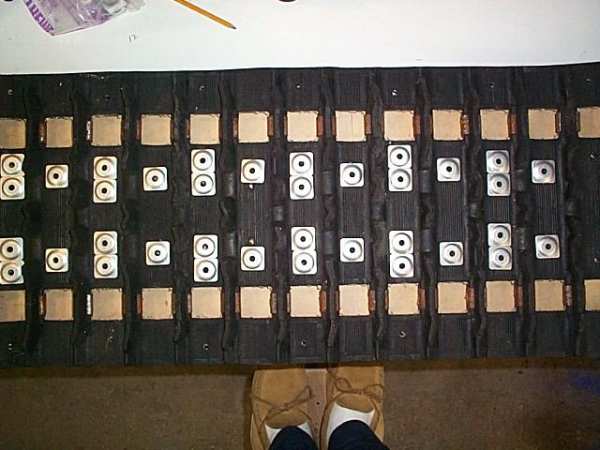

Here are 2 different patterns for 144 down the center. The one that has Woodys on it is the one I used last year and several others did as well. Had very good luck on my heavy mod SX 700, hooked up great and didn’t have a single stud tear out in 3,000 miles. The one that is laid out in backing plates is not pattern I'm going to use for grass drags this fall on my Viper. the plates that are right next to each other will have triple point scooper backing plates, so that is why they are right next to each other. I have a few others and one for 168 down the center too but don’t have any pictures of them right now. ====SRXSRULE====
