How to make your own 4th Wheel Kit

1st: Purchase a extra rear wheel for your Yamaha.

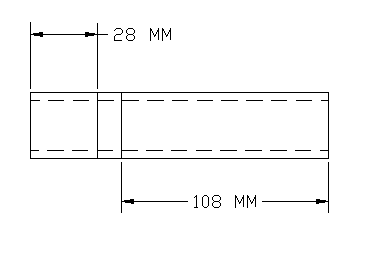

2nd: You will need to take the existing middle spacer part#90387-2012c and remove the center portion of it for the new wheel you purchase. See illustration below for measurements.

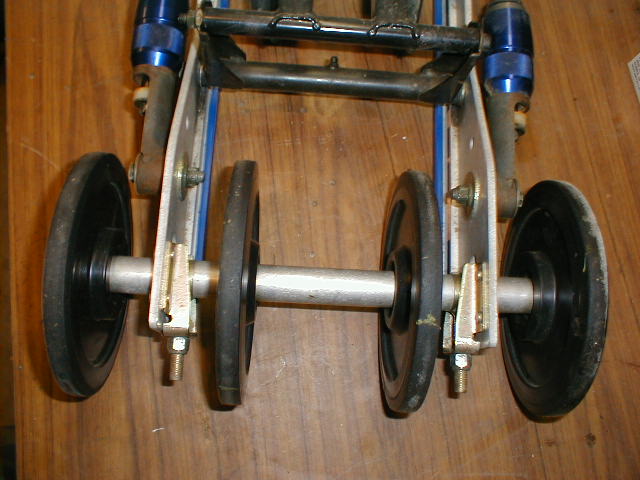

3rd: install modified spacers and new wheel and you now have a 4th wheel to support your studded or un-studded track. See photo below for finished modification.

For the mono shock skid use:

8CR-47550-10 (wheel)
90387-2013L (spacer which is 4.379" long)
90387-20015 (spacer which is .972" long)

Totallyamaha is not responsible for any damages that these modifications may cause to your vehicle; any modifications are your responsibility if you choose to do so. We are providing information ONLY. Some of these modifications may VOID your warranty and that is your responsibility to look into. The Totallyamaha users have passed along most of the information found on this site. If you have any questions or concerns about anything on this site talk to your dealer before using any of the information. Totallyamaha will not be liable for any damages or personal injury from any modification performed from this site.
