Sled Lift Info

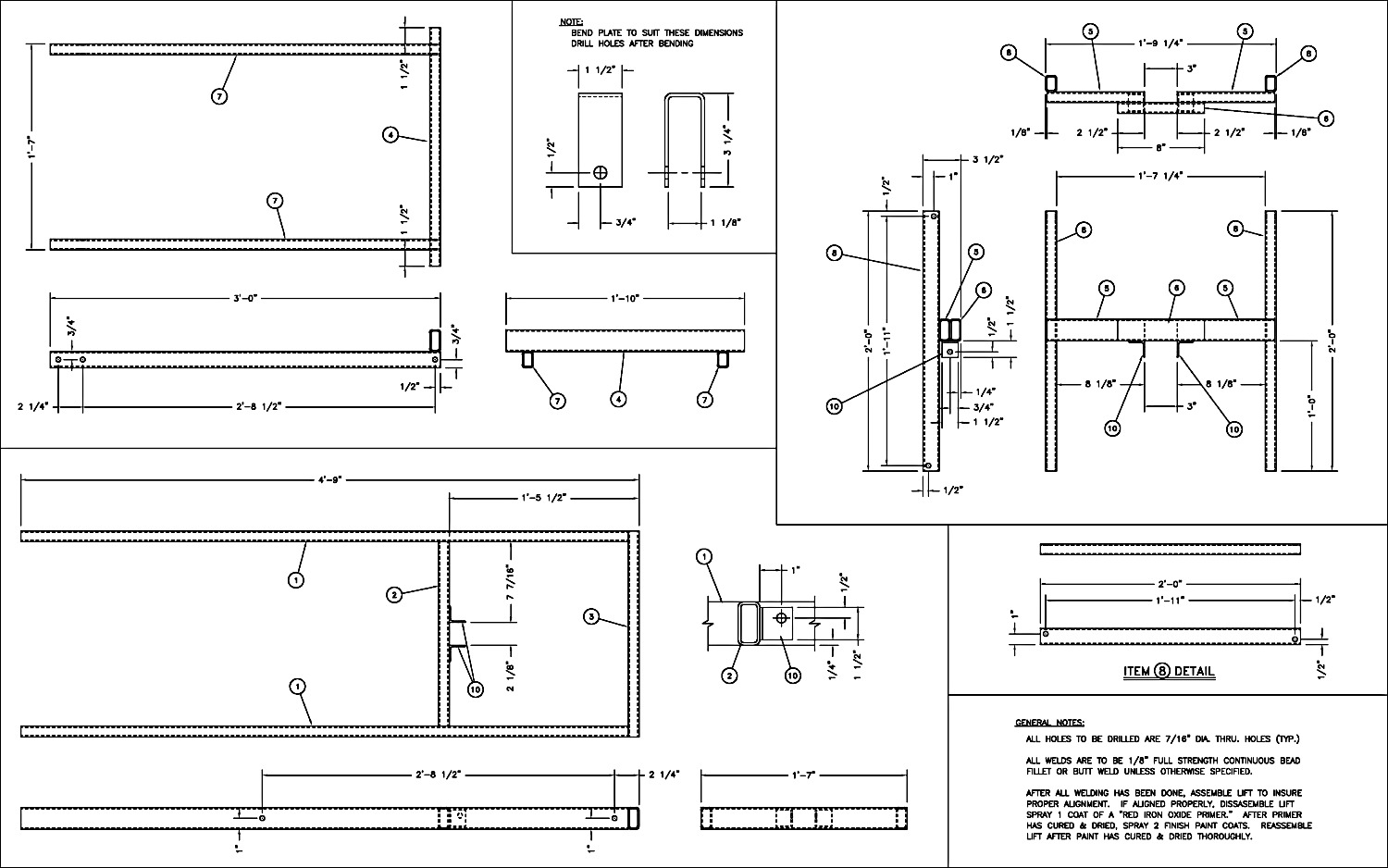

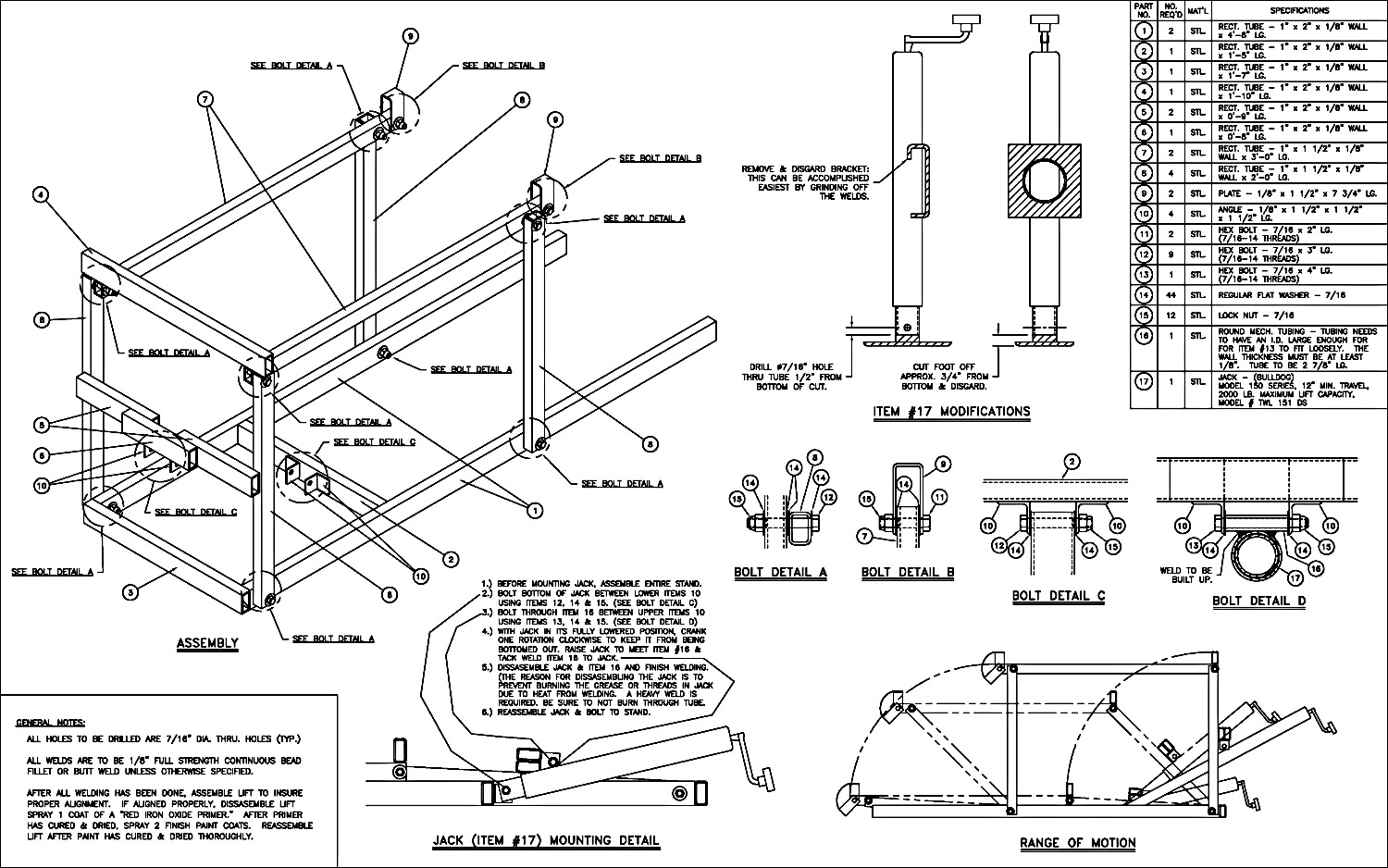

Below you will find plans from KGMZ on how to build your own sled lift.

Below are 11x17 images

Below are 8 1/2x11 images

Click on the Thumbnail for full size pics

From: KGMZ

  Any questions feel free to email the Webmaster.
